Conmed Stryker Electric Orthopedic Drill Medical Power Tools for Orthopedic Surgery and Drilling Solutions

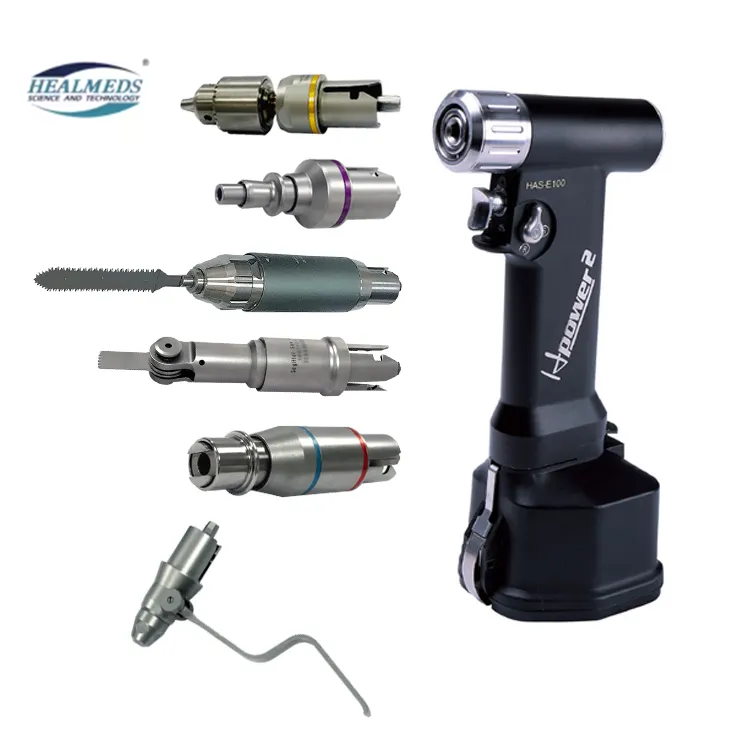

E100 Multifunction Drill

Mini multi function bone drill machine

Features

Speed Range (Key Chuck Attachment): 0-1200rpm

Torque (Key Chuck Attachment): 3.5N-m

Speed Range (Reaming Attachment): 0-400rpm

Torque (Reaming Attachment): 10N-m

All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits.

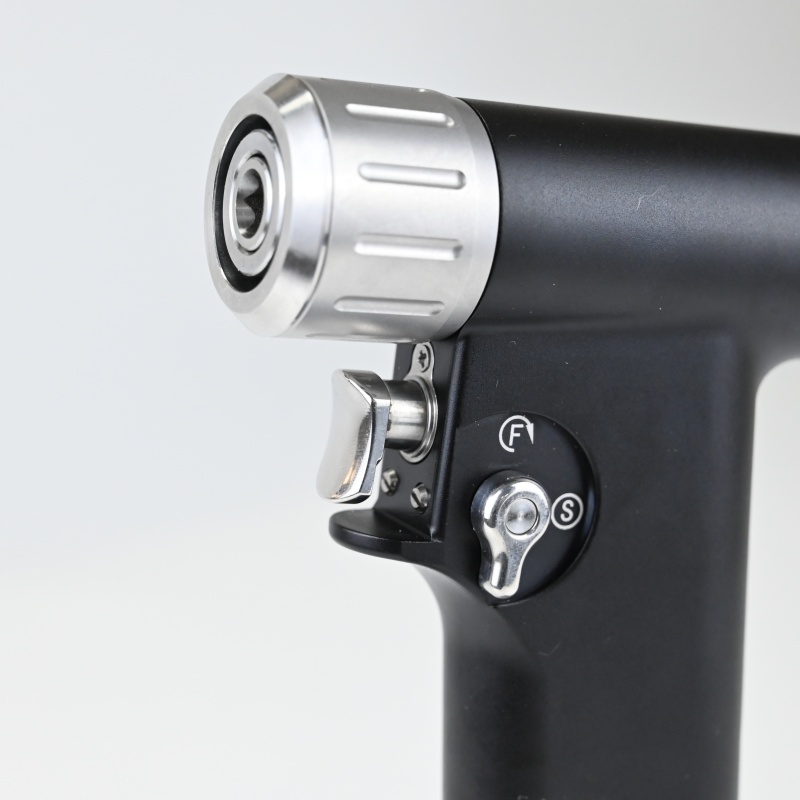

Tail power switch design, smooth operation, beautiful and does not affect the use.
Micro motor, full copper core wire movement, low noise, high power, high stability, easy to store.
Frosted texture process on the surface of the body, effectively prevent slippage, comfortable to hold, not tired of long time use.

Details

Specification

Item	Value
Multi-Function Handpiece	Equipped with brushless DC canulated motor imported from USA

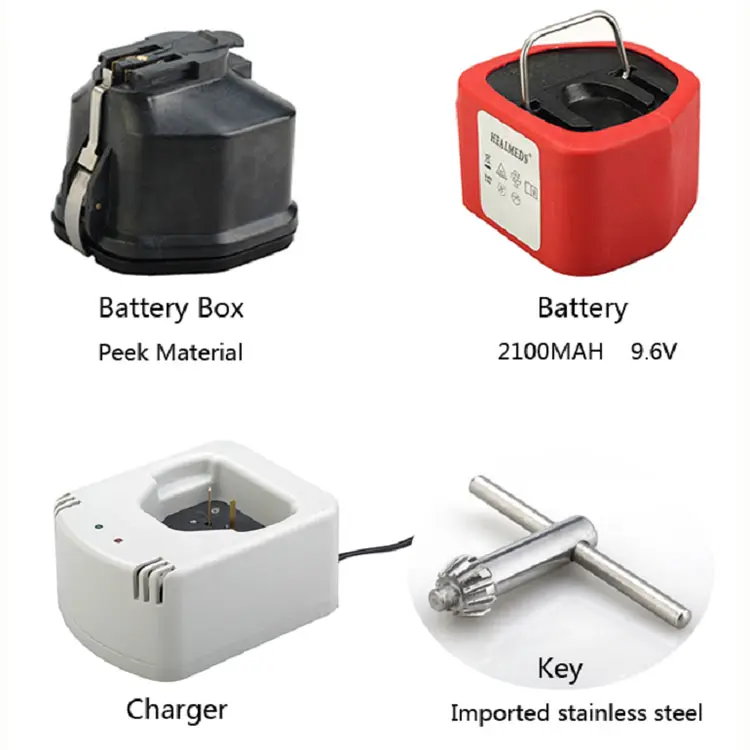

Battery	Ni-MH with Longer service-life, High capacity:2100MAH Voltage: 9.6V
Battery Box	Peek material: sterilized more than 3000 times
Charger	More convenient design to guarantee the battery life
Transfer Shield	Imported stainless steel 304
Key Chuck	Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment	Speed Range 0-400rp, Torque 10NM
K-wire Attachment	0.7-1.6mm/1.6-4.0mm

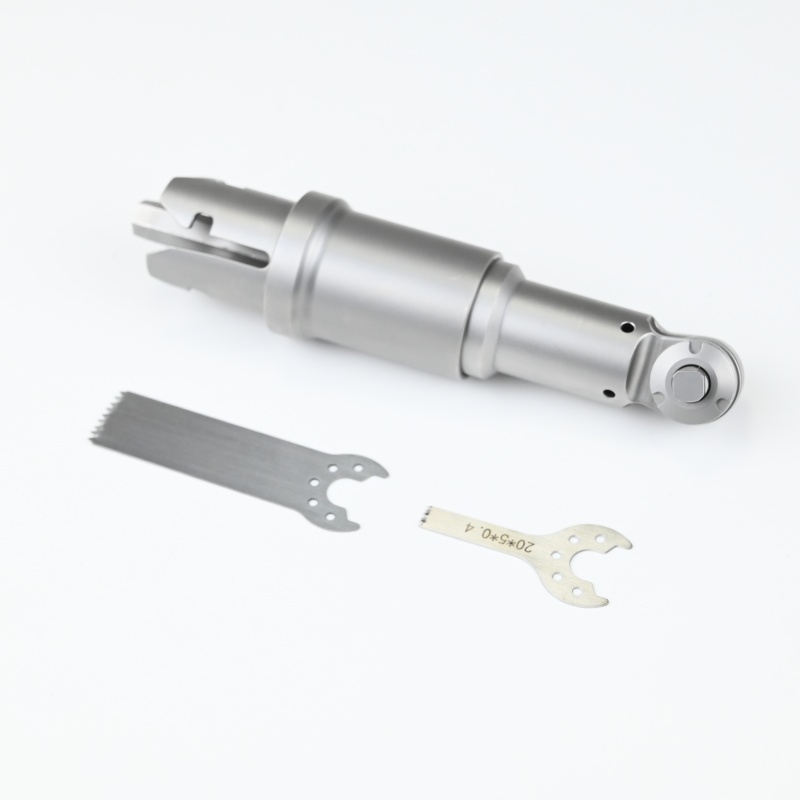

Reciprocating Saw	Frequency: 0-12000cpm
Sterilizating box	445275215mm, 4.6Kg

Payment & Delivery

Our Advantages

FAQ

What are the main applications of the E100 Multifunction Drill?

The E100 is designed for various orthopedic surgeries. It operates as a multi-functional bone drill and reaming machine with interchangeable attachments, providing highly precise and efficient drilling performance.

What type of motor is used in the handpiece?

The E100 handpiece is equipped with a high-performance brushless DC cannulated motor imported directly from the USA, which delivers excellent power, low noise, and enhanced reliability.

What are the specifications of the battery and its sterilization capacity?

It features a high-capacity Ni-MH battery (2100MAH, 9.6V) designed for an extended service life. The battery box is made of highly durable PEEK material, which can be sterilized and autoclaved more than 3000 times.

Can the speed and torque be adjusted for different attachments?

Yes. With the Key Chuck attachment, the speed range is 0-1200rpm with a torque of 3.5N-m. With the Reaming attachment, the speed range shifts to 0-400rpm with a high torque output of 10N-m.

What wire sizes does the K-wire attachment support?

The K-wire attachment is compatible with wires ranging from 0.7-1.6mm and 1.6-4.0mm, allowing for versatile clinical operations.

What materials are used for key accessories like the transfer shield?

The transfer shield is crafted from imported premium 304 stainless steel, ensuring exceptional resistance to corrosion and structural integrity during repeated surgical procedures.
