Linvetac / Hall / Conmed Battery System Medical Orthopedic Drill Set Multifunction Drill and Saw

Product Description

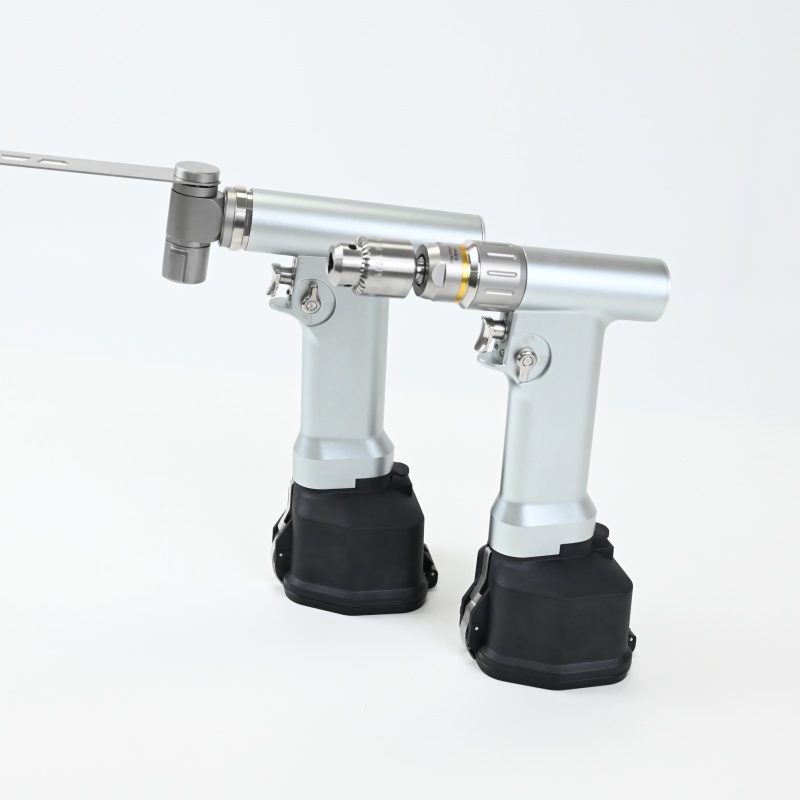

E100 Multifunction Drill

Mini Multi Function Bone Drill Machine

Our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance provide dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.

Product Features & Specifications

  • Speed Range (Key Chuck): 0-1200rpm
  • Torque (Key Chuck): 3.5N-m
  • Speed Range (Reaming): 0-400rpm
  • Torque (Reaming): 10N-m

All copper thick wall chuck, very durable, high concentricity, stable speed, spindle clamping, easy and quick to change drill bits. Tail power switch design provides smooth operation, beautiful appearance and does not affect use. Equipped with a micro motor with full copper core wire movement for low noise, high power, high stability and easy storage. Frosted texture process on the surface of the body effectively prevents slippage, is comfortable to hold, and reduces fatigue during long-term use.

E100 Multifunction Drill Features

Details & Components

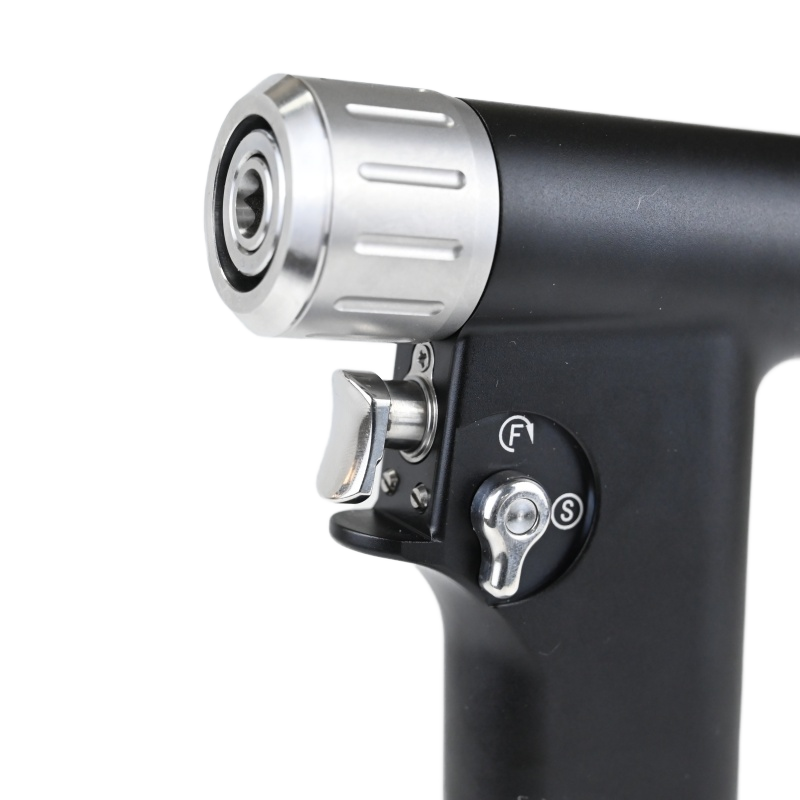

E100 Handpiece Details

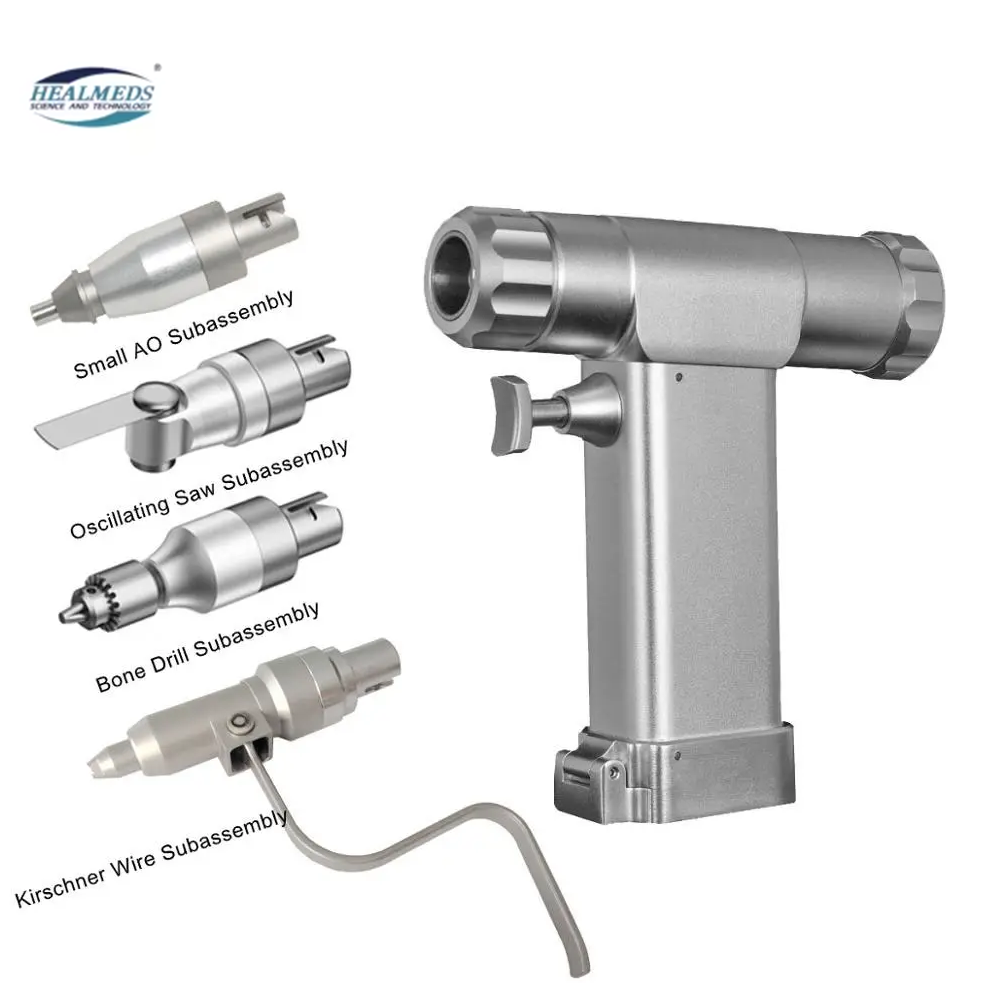

Attachment Detail 1
Attachment Detail 2
E100 Sterilization Container Set

Technical Specification

Item Value
Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA

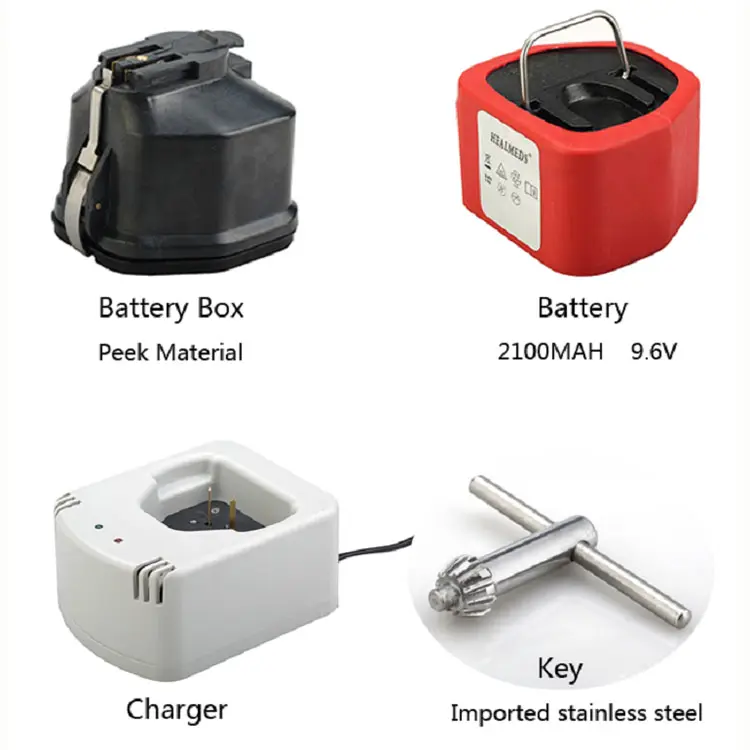

Battery Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V

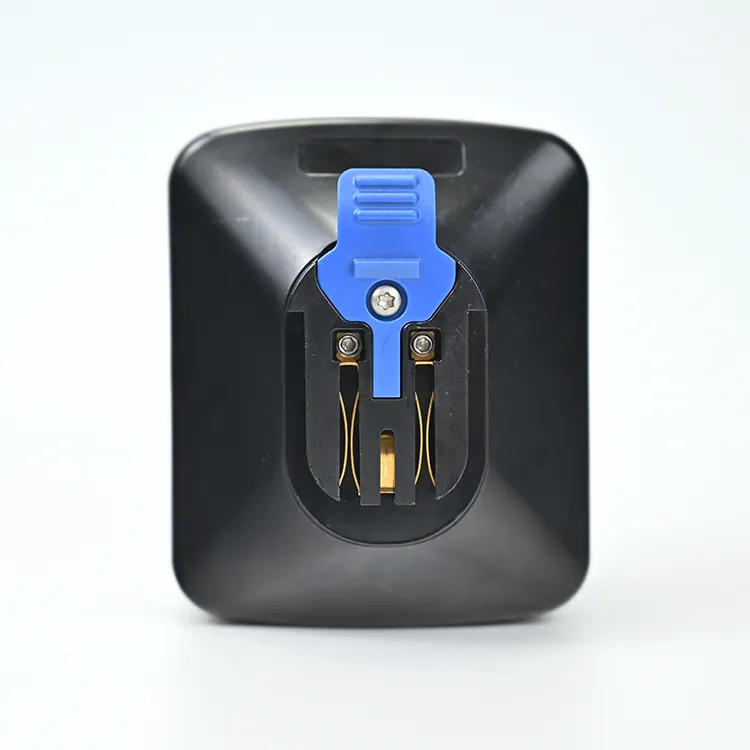

Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445 * 275 * 215mm, 4.6Kg

Payment & Delivery

Payment and Delivery Information

Our Advantages

Manufacturing Advantage
Quality Standard
Service Advantage
Certificate and Testing

Frequently Asked Questions

FAQ Visual Reference
Q1: What is the sterilization capacity of the battery box?
The battery box is constructed from high-quality Peek material, allowing it to withstand sterilization processes more than 3000 times without degrading.
Q2: What kind of motor is integrated into the E100 handpiece?
The handpiece features a high-performance brushless DC canulated motor imported from the USA, designed to provide high power stability, low noise, and minimal vibration.
Q3: Can the speed and torque be adjusted for different attachments?
Yes, the system supports multiple speeds and torques depending on the attachment: 0-1200rpm (3.5N-m torque) for the Key Chuck attachment and 0-400rpm (10N-m torque) for the Reaming attachment.
Q4: What is the battery capacity and voltage?
The E100 system utilizes a high-capacity Ni-MH battery rated at 2100MAH with a voltage of 9.6V, ensuring longer service life and sustained operating power.
Q5: What size ranges does the K-wire attachment support?
The K-wire attachment supports diameter ranges of 0.7mm - 1.6mm and 1.6mm - 4.0mm to accommodate various surgical procedures.
Q6: How is slip resistance handled during operation?
The body surface of the E100 handpiece features a premium frosted texture process which effectively prevents slippage, provides a comfortable grip, and reduces fatigue during long procedures.
