Medical Supplies China Orthopedic Bone Cutting Machine Small Oscillating Saw System110v 220v

Product Description

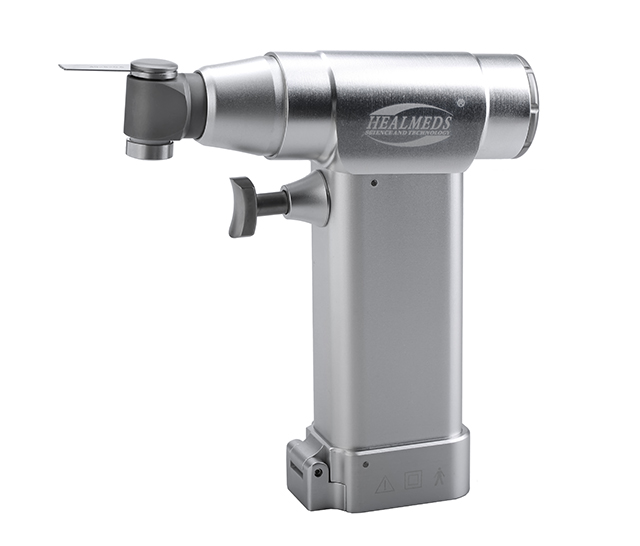

Medical Supplies Orthopedic Bone Cutting Machine Small Oscillating Saw System 110V/220V
Medical Supplies Orthopedic Bone Cutting Machine Small Oscillating Saw System 110V/220V
Product Description
Technical Data:
No. Item Value No. Item Value
1 Oscillation 0-16000cpm 4 Sterilization ≤155°C
2 Battery capacity 1400mAh 5 Operation(V) voltage 7.2V
3 Battery type Ni-MH battery 6 Noise ≤75dB
Configuration:
No. Accessory Quantity (PC) Note
1 Handpiece 1 Standard

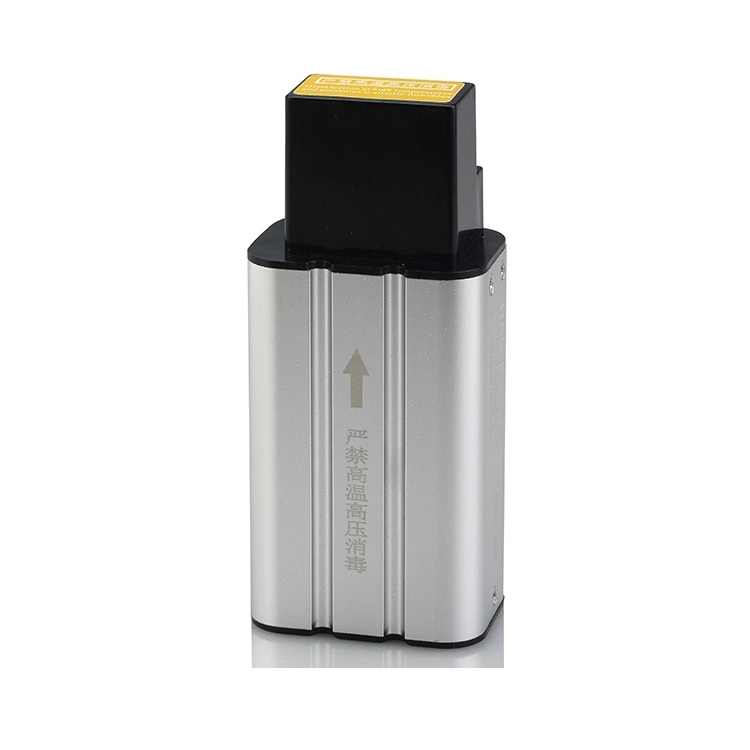

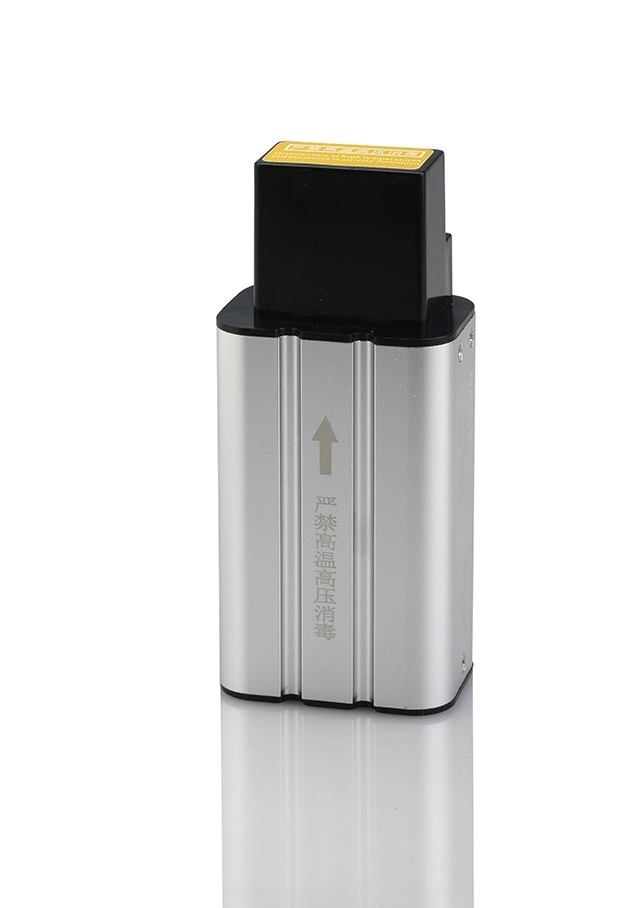

2 Battery 2 Standard

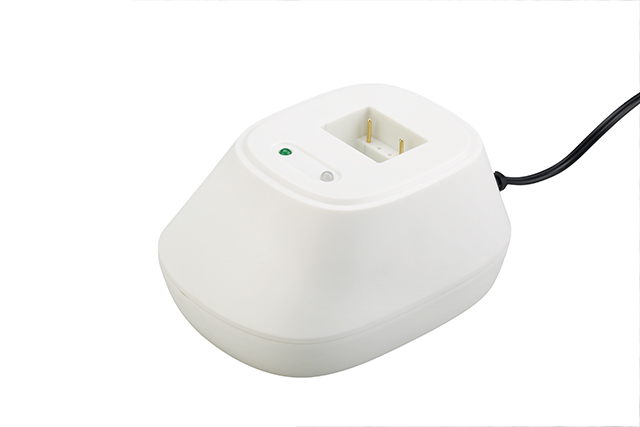

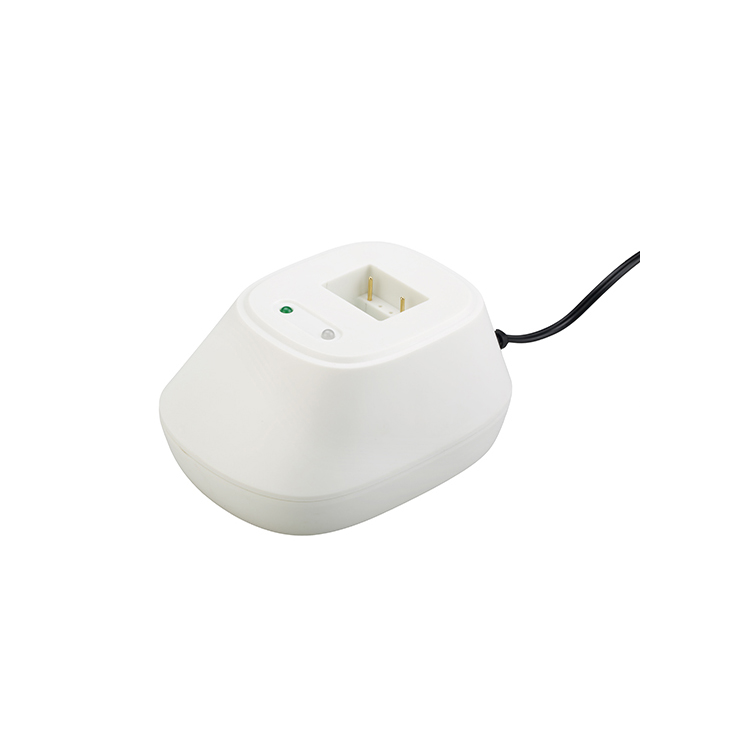

3 Charger 1 Standard
4 Blades 2 Standard

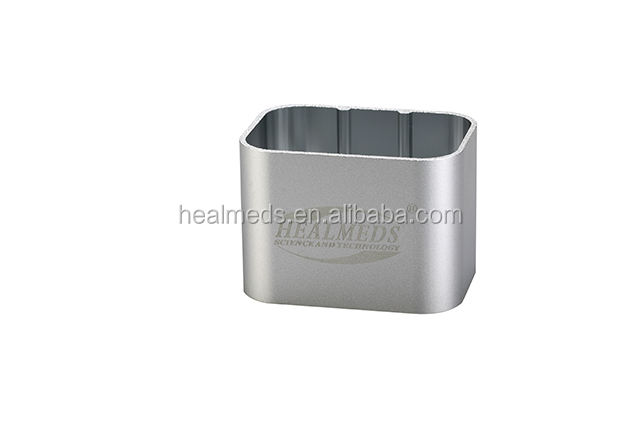

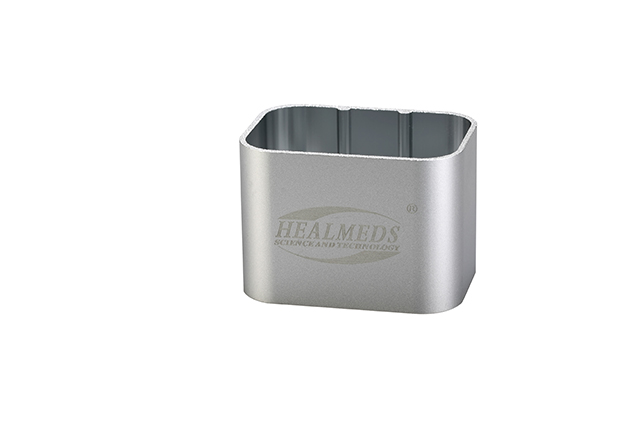

5 Sterilization channel 1 Standard
6 Aluminum alloy case 1 Optional
Product Features
  • Made of High-strength stainless steel!
  • Mini handpiece, suitable for use!
  • Imported Motor, excellent performance!
  • No Limit speed-changing, convenient!

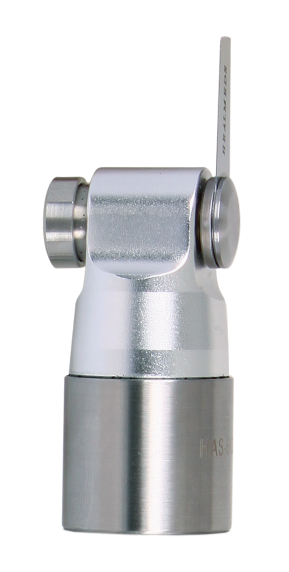

Product Detail Gallery
Warranty Policy

Warranty for the whole machine is 1 year, for the motor is 2 years, and for the battery and other fast consumption items is 3 months.

Important Notes
  • Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  • Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
  • The battery needs to be taken out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  • The battery cannot be sterilized, it is not autoclavable.
  • The cranial bur must be washed right after the surgery by purger in order to avoid the blood sticking in the bur, then we should make it dry.

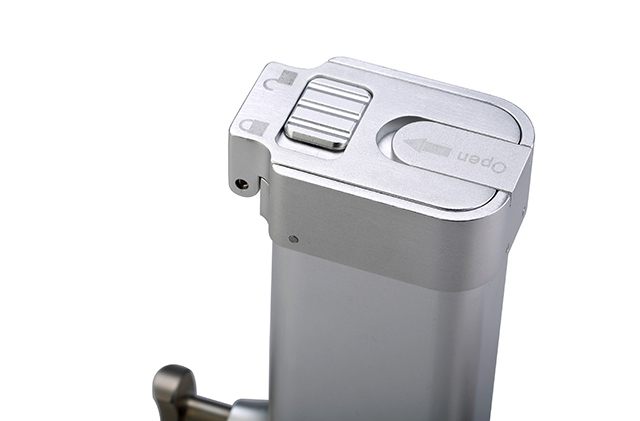

  • The battery space in the handpiece of the tool should not have any water after sterilization.
  • The cranial bur blade is made of medical stainless steel, in order to avoid being broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only be used for 1 surgery.
Company Overview

The manufacturer was established in 2005. We are a medical device manufacturer integrated with R&D, production and sales, organizing production strictly in accordance with GMP certification standards. We focus on medical drill series, saw series, medical warming systems, and point therapy plasters. Our main products include medical bone drills, multi-function cannulated drills, oscillating saws, reciprocating saws, medical electric plaster saws, patient warming systems, and point therapy plasters. These devices are widely used in trauma operations, thoracic surgeries, joint operations, veterinary orthopedics, and more.

Over the past years, the company has always aimed for a "Professional, Dedicated, Innovative, Share & Win-win" strategy, which has supported long-term development in today's medical device market and achieved a satisfying market share worldwide.

Manufacturing Factory
Certifications

CE / ISO13485 / CFDA / GMP / FSC

Medical Device Certifications
Exhibitions
Packaging & Shipping

Packing: Optional Aluminum case for each set, then placed into a good quality carton, or customized on request.
Shipping: Door to door courier options like DHL / TNT / UPS / FEDEX, or shipped by air / sea.

Packaging Case and Cartons
Frequently Asked Questions (FAQ)
What is the sterilization limit for this oscillating saw?
The standard sterilizing temperature should not exceed 135 °C (improved types can withstand up to 155 °C). Exceeding these temperatures will cause damage to the motor.
Can the battery be sterilized?
No, the battery cannot be sterilized and is not autoclavable. It must be removed from the handpiece after the surgical procedure.
What is the warranty period for this system?
We offer a 1-year warranty for the whole machine, a 2-year warranty for the motor, and a 3-month warranty for the battery and fast consumption accessories.
What type of battery does the system use, and what is its capacity?
The system is equipped with a 1400mAh Ni-MH battery operating at a voltage of 7.2V.
How should the cranial bur blades be used and maintained?
The cranial bur blade is made of medical stainless steel, making it flexible but not excessively hard. To prevent breakage, it is recommended to use each blade for only one surgery and wash it immediately afterward to prevent blood residue from sticking.
What are the packaging and delivery options?
Each set is packaged in an optional protective aluminum case and then placed into a durable carton. Shipping can be arranged via door-to-door couriers (DHL, TNT, UPS, FEDEX) or by air/sea freight.
