Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet

Product Description

Product Description

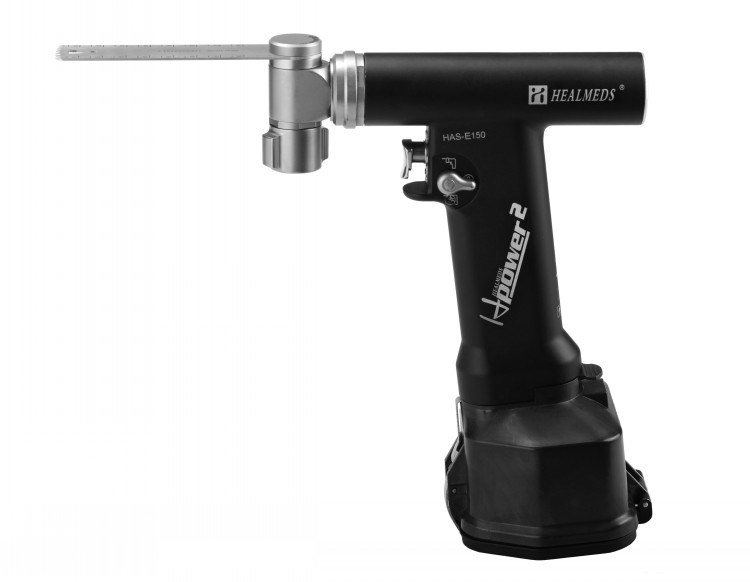

Product Description Main Image
Product Detail View 1

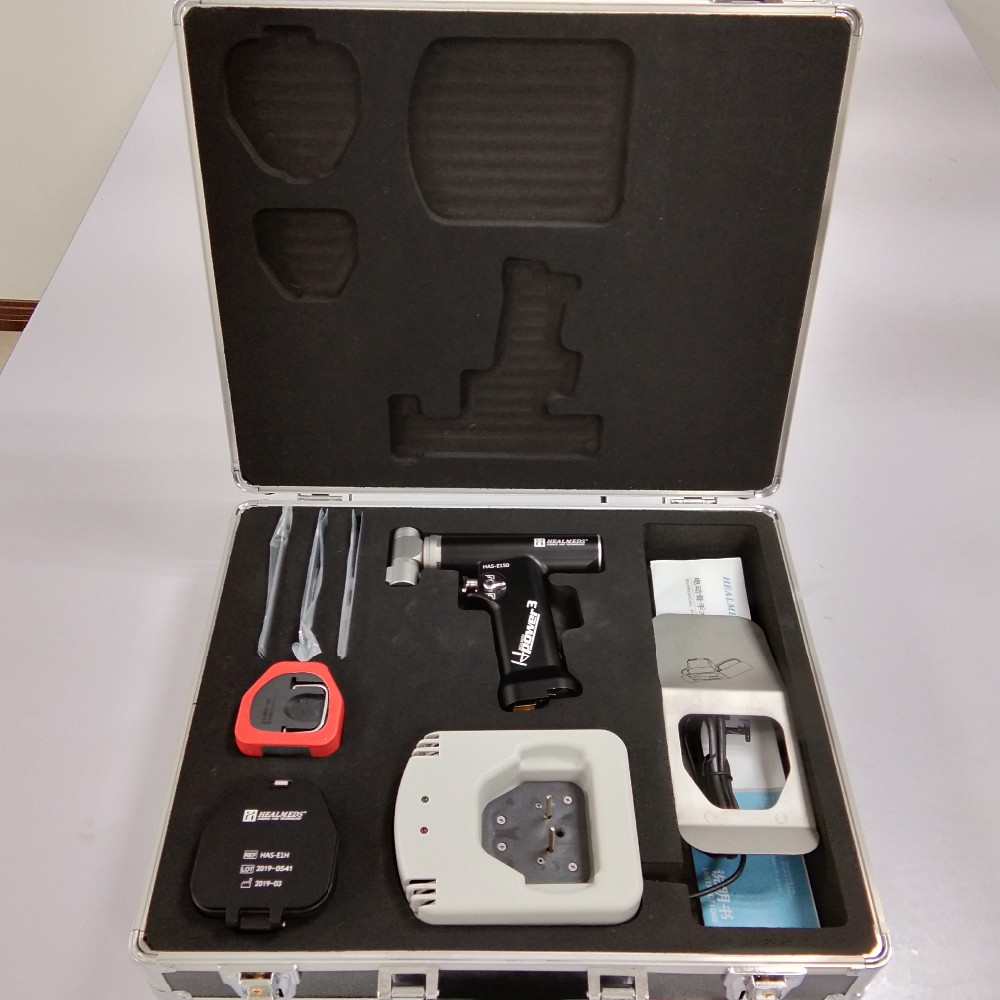

Product Detail View 2
Specification
NO. Item Value
1 Oscillations 11000cpm
2 Swing ≥4.5°
3 Noise ≤75dB
4 Sterilization temperature 135°C
5 Operation voltage 9.6V
6 Battery capacity 2100mAh
NOTE:
  • Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  • Normal bone drill can only hold drill bits less than 6 mm, reaming drill with big torque, rpm is around 300, hollow drill is used with nail or K wire, rpm is around 600.
  • The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  • The battery cannot be sterilized, it is not resistant to high temperatures.
  • The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
  • The battery space in the hand piece of the tool should not have any water, after sterilization.
  • The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be worn-out, we suggest each blade only use for 1 surgery.
Recommend Products
Certification
Certification Certificate

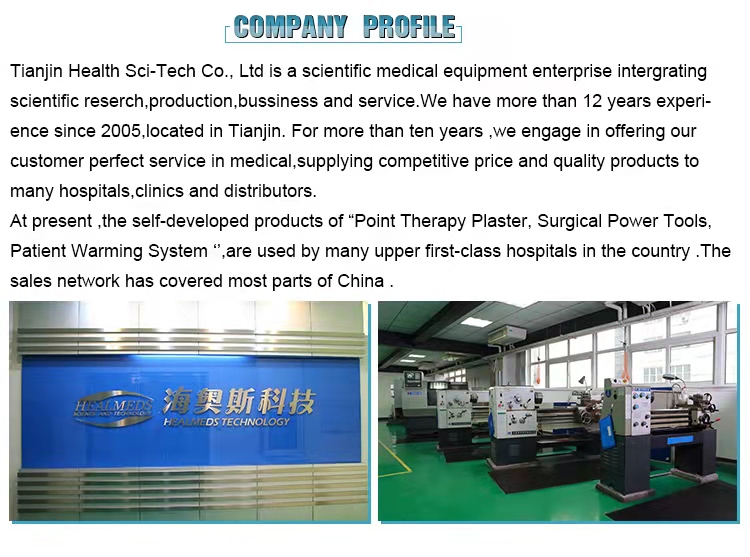

Company Profile

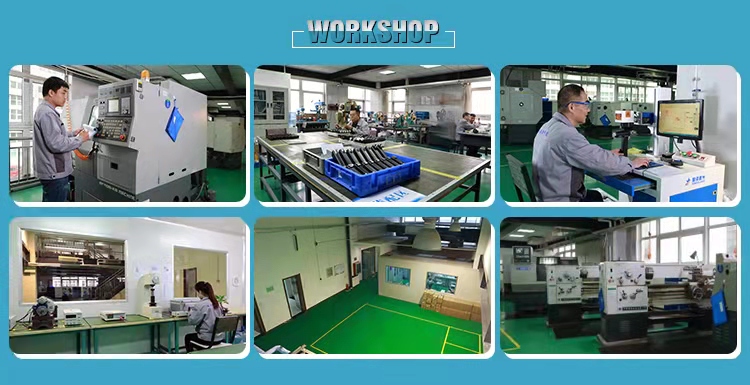

Company Profile View 1
Company Profile View 2
Exhibition
Exhibition Highlights
FAQ
FAQ Visual Reference
Q What is the maximum sterilization temperature for the device?
The recommended sterilization temperature is ≤ 135 °C. Improved types can handle up to ≤ 155 °C. Exceeding these limits can damage the motor.
Q Can the battery be sterilized under high temperatures?
No, the battery is not resistant to high temperatures and cannot be sterilized. It must be removed from the handpiece prior to sterilization.
Q How should I maintain the battery after surgery?
The battery must be taken out of the power tool immediately after surgery. Keeping it inside can lead to small automatic discharges, which shortens overall battery life.
Q How often should the cranial bur blades be replaced?
The cranial bur blade is made of medical stainless steel designed for flexibility. It is prone to wear and tear, so we strongly suggest replacing the blade after every single surgery.
Q What are the cleaning requirements for the cranial bur?
The cranial bur must be cleaned with a purger immediately after the procedure to prevent blood from sticking. Ensure it is completely dried after washing.
Q What speeds and configurations apply to the different drills?
Normal bone drills hold bits under 6 mm. Reaming drills run at approximately 300 rpm, while hollow drills for nails or K-wires operate at around 600 rpm.
