| Product name | Model | Material |
|---|---|---|

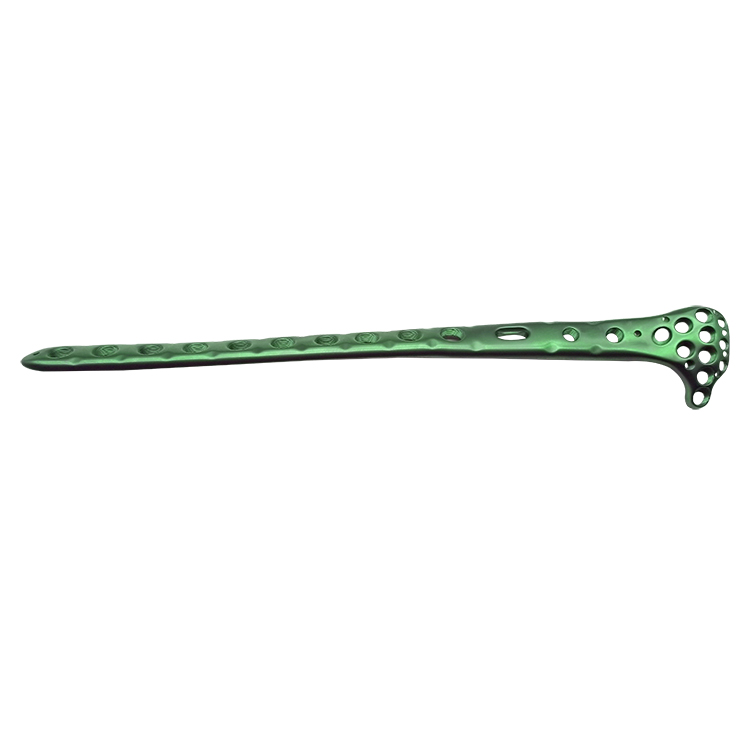

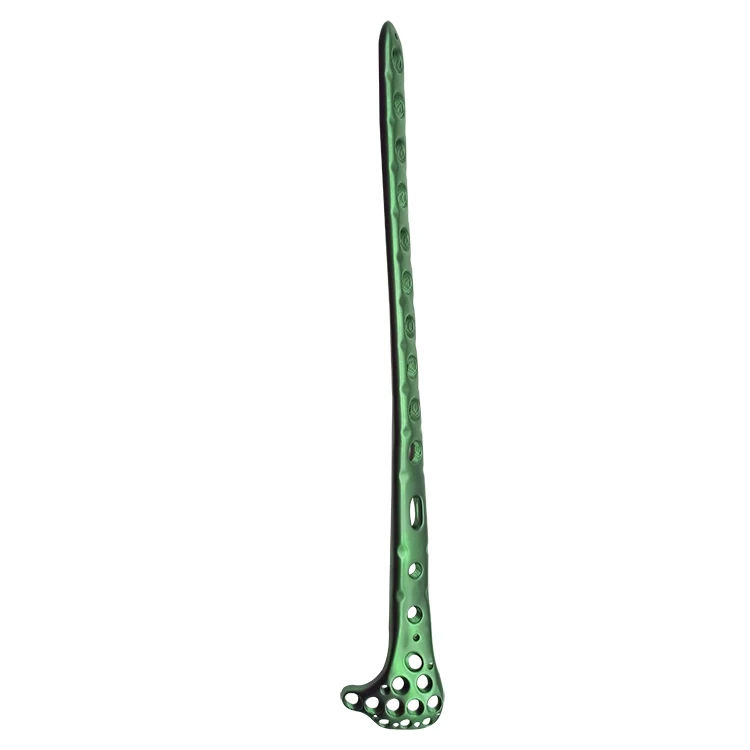

| Type II distal tibial lateral locking plate | JPSD114 | Titanium Alloy |
| Fit: 2.7mm locking screw, 3.5mm locking screw, 5.0mm locking screw, 4.5mm cortical bone screw, 6.5mm cancellous bone screw | |||
|---|---|---|---|
| Code | Direction | Specification | Length |
| 11350205 | Left | 5 | 142mm |
| 11350305 | Right | 5 | 142mm |
| 11350206 | Left | 6 | 157mm |
| 11350306 | Right | 6 | 157mm |
| 11350207 | Left | 7 | 172mm |
| 11350307 | Right | 7 | 172mm |
| 11350208 | Left | 8 | 187mm |
| 11350308 | Right | 8 | 187mm |
| 11350209 | Left | 9 | 202mm |
| 11350309 | Right | 9 | 202mm |
| 11350210 | Left | 10 | 217mm |
| 11350310 | Right | 10 | 217mm |
| 11350211 | Left | 11 | 232mm |
| 11350311 | Right | 11 | 232mm |
| 11350212 | Left | 12 | 242mm |
| 11350312 | Right | 12 | 242mm |
| Product name | Model | Specification | Material | Code | 5-20 | 20 & Above |
|---|---|---|---|---|---|---|
| Reconstruction Locking Plate | ZXSD02 | 6 hole | Titanium Alloy | 10010006 | 57.95 | 54.9 |
| Narrow Dynamic Locking Plate II | ZXSD05 | 6--14 hole | Titanium Alloy | 10040406 | 54.15 | 51.3 |
| Humeral compression locking plate | JPSD13 | 4--16 hole | Titanium Alloy | 10350203 | 57.95 | 54.9 |
| Clavicular Hook Locking Plate | JPSD09 | 4--8 hole | Titanium Alloy | 10300204 | 56.05 | 53.1 |
| Clavicular Hook Locking Plate II | JPSD90 | 4--10 hole | Titanium Alloy | 10300204 | 57 | 54 |
| Reconstruction Clavicular Locking Plate IV | JPSD94 | 7-9 hole | Titanium Alloy | 11150207 | 76 | 72 |
| Proximal humeral locking plate | JPSD33 | 3--14 hole | Titanium Alloy | 10540203 | 58.9 | 55.8 |
| Obique T- Locking Plate | JPSD07 | 3 hole | Titanium Alloy | 10280203 | 58.9 | 55.8 |
| Distal lateral humeral locking plate | JPSD13 | 3--11 hole | Titanium Alloy | 10280203 | 68.5 | 64.8 |
| Proximal ulnar locking plate | JPSD15 | 3--12 hole | Titanium Alloy | 10360203 | 71.25 | 67.5 |
| Distal radial locking plate II | JPSD78 | 3--8 hole | Titanium Alloy | 10990203 | 40.85 | 38.7 |
3 different dorsiflexion angles, 0/ 5/ 10 respectively, are suitable for different joints. Reliable Kirschner wire compression holes and slots in the middle of plate. Etching lines on the plate indicate the correct fusion position.
Plates are anatomically precontoured. With countersinkable head design of 2.7mm screw to reduce tissue irritation. 5 types of medial-lateral distal humeral locking plates allow doctors to determine fracture fixation schemes according to the condition.
Extension holes in the middle of the plate to adjust the position of the plate. Plate can be placed on the ulnar and radial sides of the phalanx. Plates are anatomically precontoured of phalanx and have left and right types.
The volar / dorsal distal radius combination provides a rich imagination space for doctors. Precontoured design adheres to bone surface to reduce tissue irritation. Round thin blunt edge design for minimally invasive insertion through the muscle.
Anatomically precontoured plates adhere to calcaneal protrusion, posterior articular talus and calcaneal tubercle. Countersinkable head design of screw reduces the possibility of screw head protruding plate surface.
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
