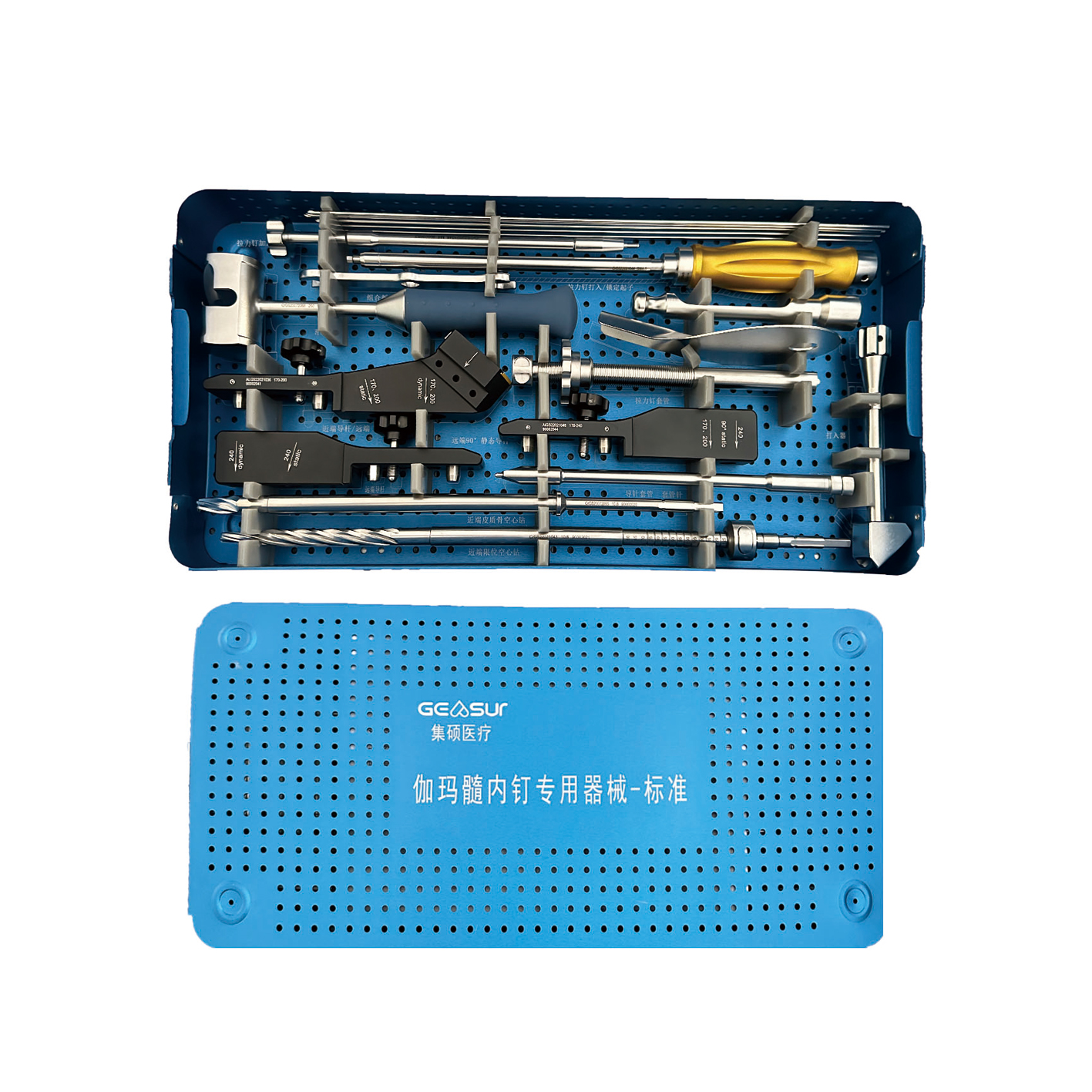

Geasure Hot Selling Intramedullary Nails Femur Interlocking Nail Surgical Orthopaedic Instrument Set Titanium Alloy GA8X

1 / 1

Geasure Hot Selling Intramedullary Nails Femur Interlocking Nail Surgical Orthopaedic Instrument Set Titanium Alloy GA8X

Send Inquiry

Product Description

Instrument Set Specifications

Picture number	Part Name	Specification	Size	Quantity	Coding	Drawing number
1	Radiographic Ruler	Development template	9-12	1	90002201	GA3X01
2	Guide Wire 3.2 mm	Thread guide pin	3.2×400	5	90002003	GA1X03
3	Hand Reamer	Hard expansion	9	1	90002025	GA1X25
4	Flexible Ream Shaft	Soft expansion tool bar is rotating forward	8.5-14	1	90002204	GA3X0500
5	Opening Drill Bit , cannulated	Proximal Hollow Drill	14	1	90002203	GA3X04
6	Protection Sleeve	Inlet guide tube	\	1	90002601	GA8X01
6	Handle for Protection Sleeve	Channel handle	\	1	90002602	GA8X0200
7	Gripper	Guide pin holder	117	1	90002050	GA1X4100
8	Connection Screw, cannulated	Connecting bolt	M8×0.75	2	90002218	GA3X09
9	Rod Pusher for Reaming Rod with Hexagonal Screwdriver	Ball handle wrench	SW6.5	1	90002217	GA3X0800
10	Insertion Handle for Nail	Handle	\	1	90002219	GA3X10
11	Multihole Drill Sleeve	Cellular locator	17/3.2	1	90002603	GA8X0300
12	quick coupling	Adapter	85	1	90002056	GA1X4700
13	T-Handle with quick coupling	Quick change handle	92	1	90002055	GA1X4600
14	Reduction Instrument for Medullary Nails	Reset rod	7	1	90002016	GA1X1600
15	Reamer Head, 8.5 mm dia.	Soft expansion head 8.5	8.5	1	90002205	GA3X06
15	Reamer Head, 9 mm dia.	Soft expansion head 9	9	1	90002206	GA3X07
15	Reamer Head, 9.5 mm dia.	Soft expansion head 9.5	9.5	1	90002207	GA3X07
15	Reamer Head, 10 mm dia.	Soft expansion head 10	10	1	90002208	GA3X07
15	Reamer Head, 10.5 mm dia.	Soft expansion head 10.5	10.5	1	90002209	GA3X07
15	Reamer Head, 11 mm dia.	Soft expansion head 11	11	1	90002210	GA3X07
15	Reamer Head, 11.5 mm dia.	Soft expansion head 11.5	11.5	1	90002211	GA3X07
15	Reamer Head, 12 mm dia.	Soft expansion head 12	12	1	90002212	GA3X07
15	Reamer Head, 12.5 mm dia.	Soft expansion head 12.5	12.5	1	90002213	GA3X07
15	Reamer Head, 13 mm dia.	Soft expansion head 13	13	1	90002214	GA3X07
16	Awl , cannulated	Hollow hole opener	4.2	1	90002005	GA1X0500
17	Protection Sleeve, 12/8	Outer casing 12/8	12-8	2	90002227	GA3X18
17	Drill Bit Sleeve,8/4.3	Drill sleeve 8/4.3	8/4.3	2	90002228	GA3X19
17	Trocar,4.3	Trocar 4.3	4.3	1	90002229	GA3X20
18	Screwdriver, hexagonal with spherical head	Connecting bolt universal wrench	SW6.5	1	90002106	GA2X0600
19	Connector, for Insertion Handle	Driver	SW11/M8	1	90002202	GA3X0200
20	Aiming Arm	Proximal sight	\	1	90002220	GA3X1100
21	Protection Sleeve, 11.5/8.5	Outer casing 11.5/8.5	11.5/8.5	2	90002221	GA3X12
21	Guild Pin Sleeve,8.5/3.2	Guide needle cannula 8.5/3.2	8.5/3.2	2	90002222	GA3X13
21	Trocar 3.2mm	Trocar 3.2	3.2	1	90002223	GA3X14
22	Drill Bit,4.3,Long	Long bone drill 4.3	4.3	2	90002231	GA3X22
23	Hammer Guide Shaft	Sliding hammer guide rod	M12/10	1	90002156	GA2X56
24	Depth Gauge for Locking Screws	Lock nail depth sounder	20-100	1	90002230	GA3X2100
25	Direct Measuring Device for Guide Pin	Guide pin depth sounder	40-130	1	90002224	GA3X15
26	Reamer(Fixation Sleeve for Reamer)	Proximal limit step drill	6.5/4.5	1	90002225	GA3X1600
27	Sliding Hammer	Sliding hammer	260	1	90002073	GA1X6400
28	Compression Screw	Pressure bolt	M6	1	90002226	GA3X17
29	Screwdriver Stardrive, T25	Lock nail wrench T25	T25	1	90002232	GA3X2300
30	Screwdriver Stardrive Shaft, T25	Lock nail wrench lever T25	T25	1	90002233	GA3X24
31	Ream 6.0	Flat drill 6.0	\	1	90002240	GA3X31
32	Drill Bit 6.0	Bone Drill 6.0	\	1	90002241	GA3X32
33	Reamer 3.4/6.0	Step drill 3.4/6.0	\	1	90002242	GA3X33
34	Direct Measuring Device for Drill Bits	Sounder 4.5	150	1	90002108	GA2X08
35	Drill Bit,4.3	Bone Drill 4.3	150	2	90002148	GA2X48
36	Handle with quick coupling	AO type quick change handle	\	1	90002155	GA2X5500
37	Pin Wrench	Small wrench	4	1	90002103	GA2X03
38	Combination Wrench	Open-end wrench	SW11	1	90002102	GA2X02
39	Handle for Expander Spacer	Auxiliary positioning rod holder	268	1	90002248	GA3X3900
39	ConnectingScrew of Expander Space	Auxiliary positioning rod holding rod	265	1	90002249	GA3X4000
40	Expander Wire for Expander Spacer	Auxiliary positioning rod inner core	328	1	90002250	GA3X4100
41	L-Curette for Anterior Nail Contact	L-shaped spatula	155	1	90002117	GA2X17
42	L-space , adjustable	Adjustable positioning rod	9-12	1	90002243	GA3X3400
43	Space Shaft,9	Positioning rod 9	9	1	90002244	GA3X35
44	Space Shaft,10	Positioning rod 10	10	1	90002245	GA3X36
45	Space Shaft,11-12	Positioning rod 11-12	11-12	1	90002246	GA3X37
46
47	Extraction Screw	Pull bolt	M8×0.75	1	90002257	GA3X48
48	Aiming Beam for Locking, 340-420	Guide rod 340-420	340-420	1	90002236	GA3X2700
49
50	Expander Spacer,9	Auxiliary positioning rod 9	9	1	90002251	GA3X42
51	Expander Spacer,10	Auxiliary positioning rod 10	10	1	90002252	GA3X43
52	Expander Spacer,11-12	Auxiliary positioning rod 11-12	11-12	1	90002253	GA3X44
53	Sspace Block	Positioning card block	\	1	90002247	GA3X3800
54	Aiming Arm for Distal Locking	Remote sight	\	1	90002254	GA3X45
55	Aiming Arm for Dynamic Locking	Dynamic hole sight	\	1	90002255	GA3X4600
56
57	Extraction Hook	Guide needle with hook	2.8	1	90002015	GA1X15
58	Screwdriver Stardrive, cannulated	End cap hollow wrench	SW4	1	90002064	GA1X5500
59	Screwdriver, hexagonal with spherical head	Tail cap universal ball wrench	SW4	1	90002079	GA1X6900
	Insrument Set Box	\	\	1	90002258	GA3X-0100-XH
	Ream Head Box	\	\	1	90002258	(GA1X8400)

Orthopedic Medical Devices

Titanium Alloy Spinal Fusion Cages and Implants

Intramedullary Interlocking Nails and Orthopedic Implants

Manufacturing & Production Facility

Frequently Asked Questions

What materials are these orthopedic surgical instruments made of?

Our instruments are manufactured using high-grade medical-grade stainless steel and lightweight titanium alloys, ensuring exceptional durability, corrosion resistance, and structural strength under high surgical loads.

Can these instruments be sterilized repeatedly?

Yes, all instruments in this set are fully autoclavable and built to withstand repeated high-temperature and high-pressure steam sterilization protocols without losing dimensional accuracy or function.

What sizing options are available for the Reamer Heads in the kit?

The standard kit includes a full range of reamer head sizes starting from 8.5 mm, up to 13.0 mm (in increments of 0.5 mm), allowing surgeons to choose the precise diameter for specific intramedullary channels.

Are the guide wires and drill bits compatible with standard power tools?

Yes, the quick coupling connectors and handles designed in this set conform to universal AO standard designs, allowing quick-change compatibility with standard hospital surgical power drills.

How is quality control managed for these products?

All medical instruments and implants undergo rigorous inspection in our testing facilities. This includes material analysis, dimensional checks via automated coordinate measuring machines, and strict quality verification protocols prior to shipping.
