| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|

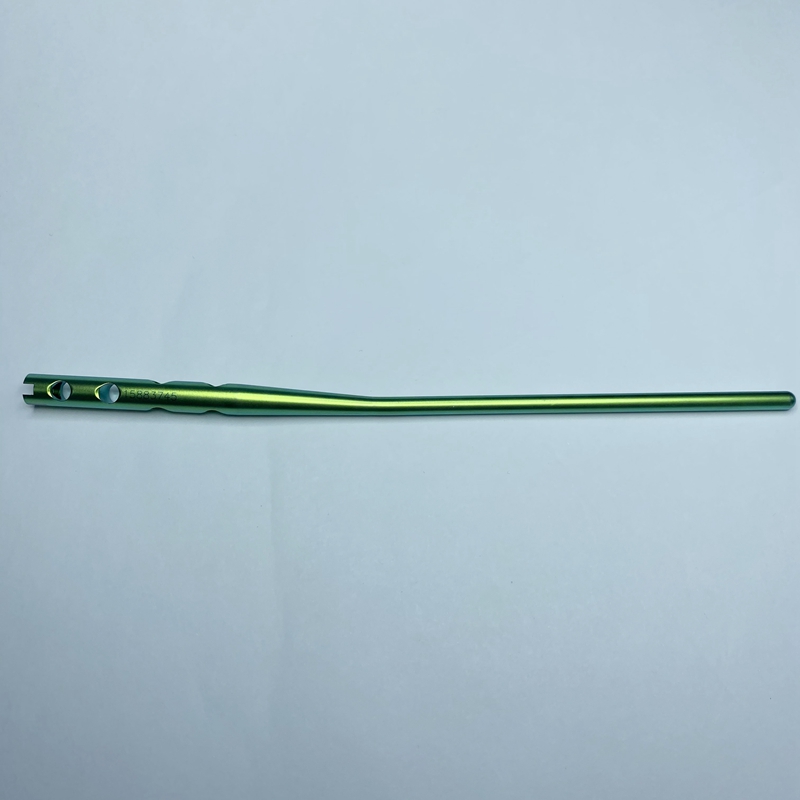

| Fibular Nail Mini nail | SWX-IIIS | 3.0×145 | Titanium Alloy | 15883145 |
Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
| Product name | Model | Specification | Material | Code |
|---|---|---|---|---|

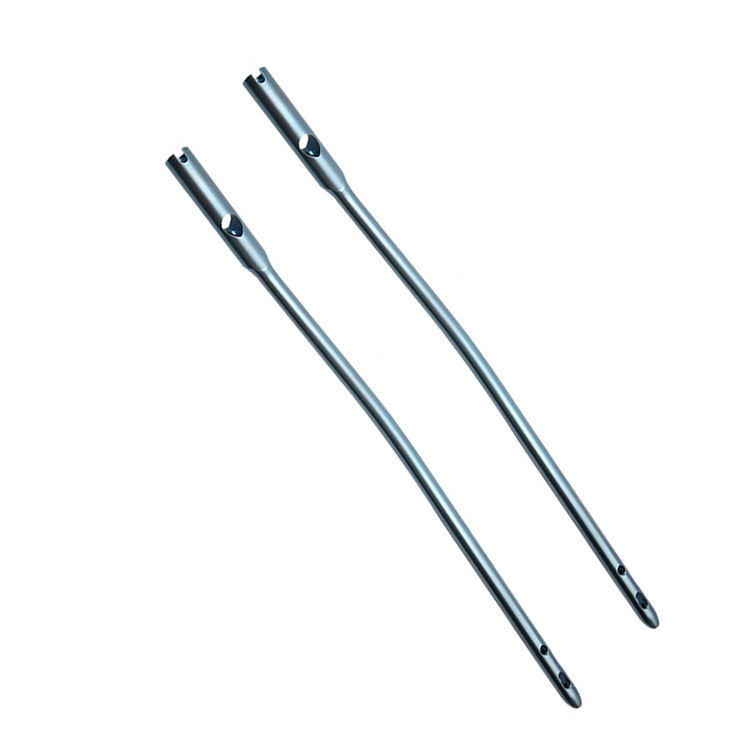

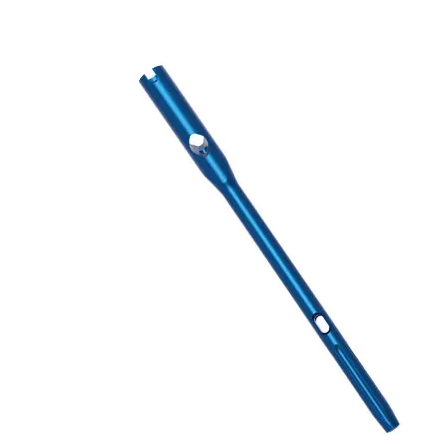

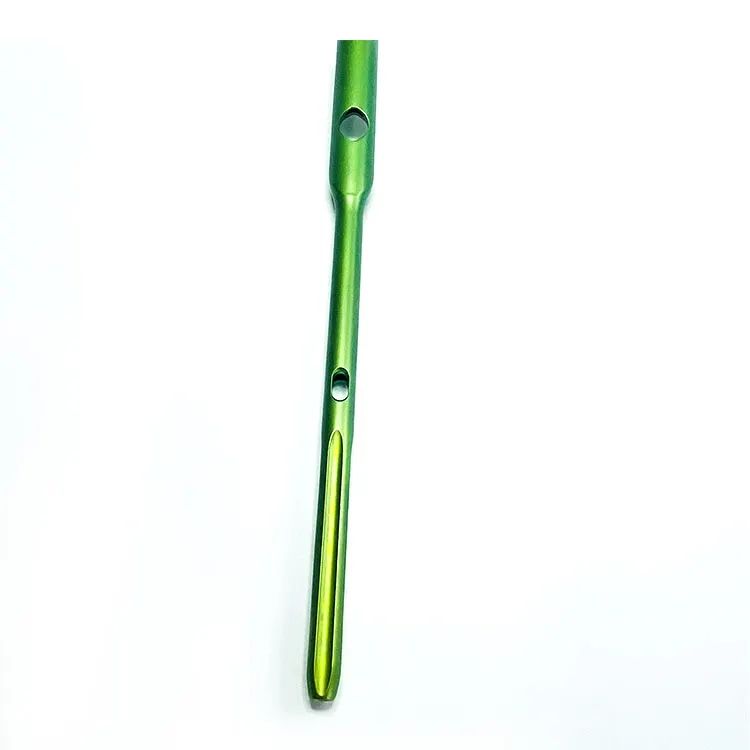

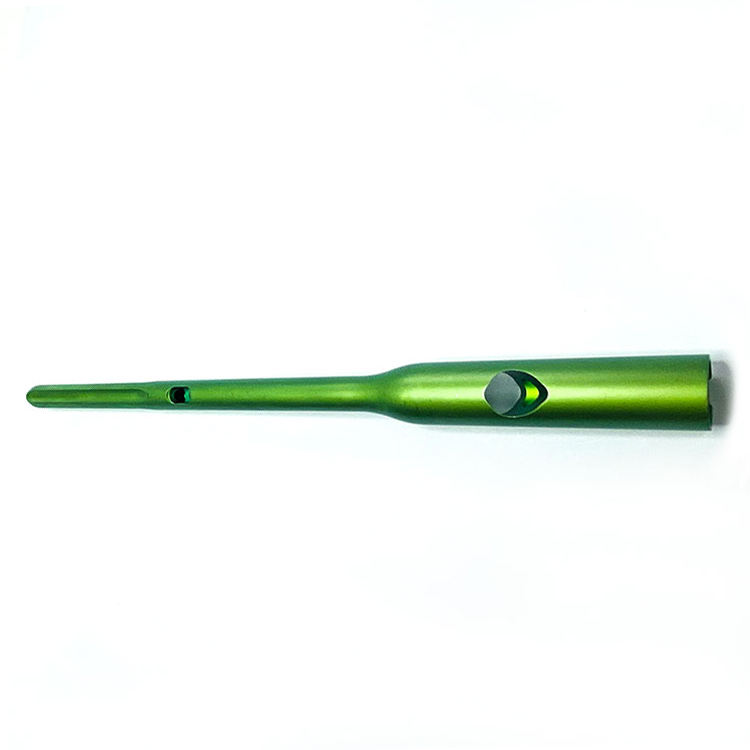

| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 locking screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail locking screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is consistent with the anatomy of the FEMORAL medullary cavity.
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short nail: diameter 8.0/9.5mm, length 160mm. Long nail: diameter 7.0/8.5mm, length 180-315mm. All titanium alloy with left & right types.
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism; no static screw is needed to maintain compression during operation.
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
A: Normally we send through express couriers like DHL, FEDEX, UPS, TNT, etc., or by postal mail upon specific requests from clients.
A: Yes, our manufacturing facilities and management systems are fully compliant and certified under ISO 9001 and ISO 13485 quality standards for medical devices.
A: We expect minimum orders to be at least US$500. However, we understand that customers may need to place smaller sample orders initially to test the market. We can offer free samples, but the cost of freight is not covered.
A: Of course you can. Just send us relevant pictures or samples. Please note that customized or sourcing requests may require a slightly longer delivery time.
A: Generally, we keep stock for listed products, which are replenished monthly depending on sales conditions. Please contact our sales team for exact real-time inventory. For payment: below 800 USD, 100% in advance. Above 800 USD, 30% T/T in advance, with the balance due before shipment. We accept L/C, T/T, Western Union, and PayPal.
A: All of our high-quality intramedullary nails are manufactured using medical-grade Titanium Alloy to ensure optimal biocompatibility, mechanical strength, and minimized risk of implant-related tissue irritation.
