1 / 5
Axiora Medical
Axiora Medical
| Product Name | Model | Material | Specification | Code |
|---|---|---|---|---|
| Humeral Nail Intramedullary Nail | SHG-IK | Titanium Alloy | 8 | 15728160 |
| Product Name | Model | Specification | Material | Code |
|---|---|---|---|---|
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×170×130° | Titanium Alloy | 15649170 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×200×130° | Titanium Alloy | 15649200 |
| Proximal Femoral Nail Antirotation Intramedullary Nail | SGM-IIK | 9.0×240×130° | Titanium Alloy | 15649240 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×15 | Titanium Alloy | 15601115 |
| Proximal Femoral Nail Antirotation End Cap | SGM-IIK | 10×20 | Titanium Alloy | 15601120 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×70 | Titanium Alloy | 15600570 |
| Proximal Femoral Nail Antirotation Blade | SGM-IIK | 10.5×80 | Titanium Alloy | 15600580 |
| Proximal Femoral Nail Antirotation φ4.9 Locking Screw | SGM-IIK | 4.9×30--72 | Titanium Alloy | 15604930 |
| Femoral Nail Locking Screw I | SGG-IIIK | 6.5×75 | Titanium Alloy | 15246575 |
| Femoral Nail Intramedullary Nail | SGG-IIIK | 9.0-13.0 | Titanium Alloy | 15249340 |
| Humeral Nail Intramedullary Nail | SHG-IK | 8 | Titanium Alloy | 15728160 |
The length is designed to be perfectly consistent with the natural anatomy of the femoral medullary cavity.
Further improves fixation strength in cases of osteoporosis. The blunt end design of the locking screw minimizes the risk of excessive penetration.
Short Nail: Diameter of 8.0 / 9.5mm, length of 160mm.
Long Nail: Diameter of 7.0 / 8.5mm, length of 180-315mm (15mm intervals).
All nails are available in left and right anatomical configurations and made from titanium alloy, suitable for all standard applications with minimally invasive implantation.

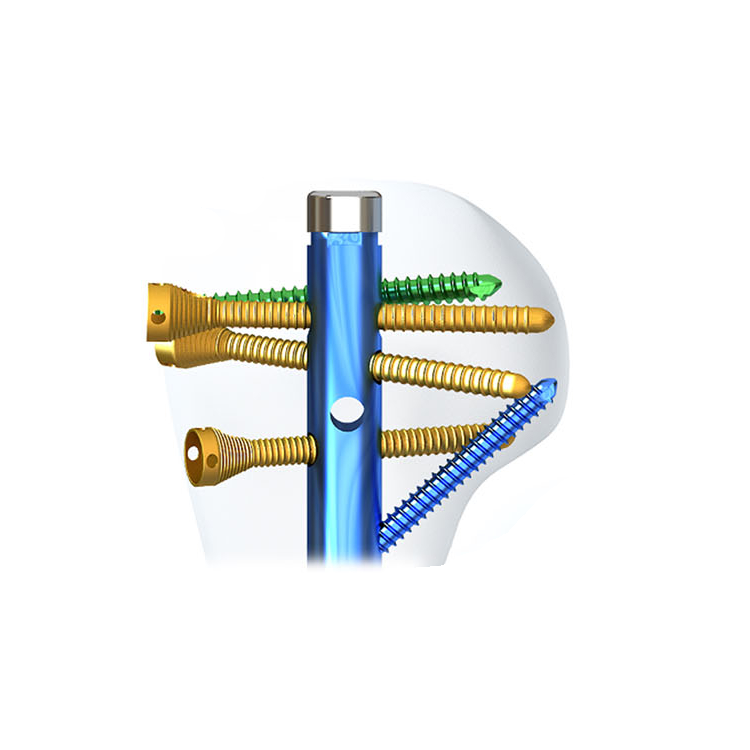

Features multi-plane and multi-locking screw options for optimal stability. The screw-in-screw structure boosts fixation in osteoporotic bone, while the countersinking and blunt head configurations limit tissue irritation and penetration risks.

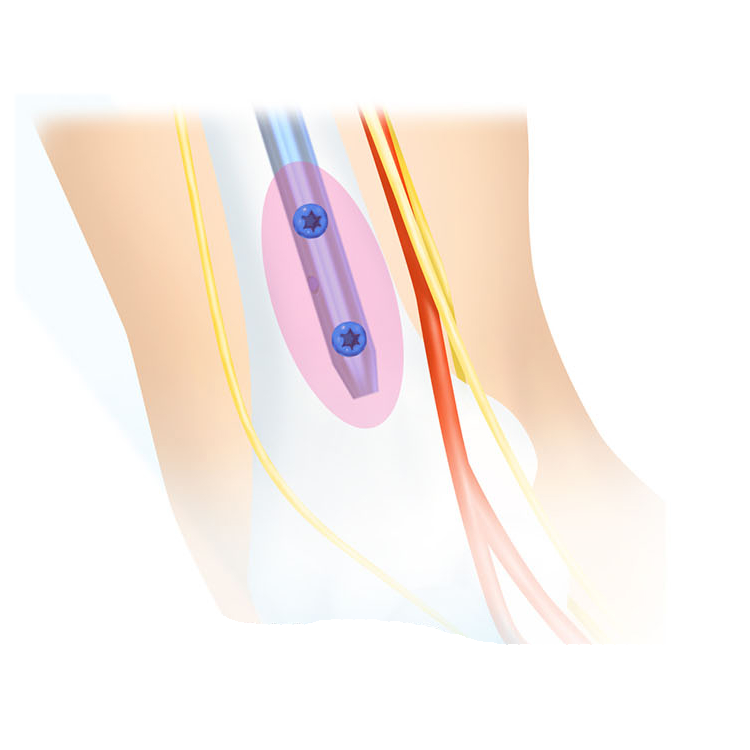

Short screws utilize two distinct locking planes. Long screws feature three locking holes strategically positioned to avoid key blood vessels between the median and radial nerves. Dual anterior/posterior locking holes minimize rotation and displacement.
Specialized compression holes enhance stability for transverse or short oblique fractures. Features a self-sustaining mechanism that requires no static screw to maintain compression intraoperatively.
Compared to standard G3 designs with a 1.5m radian radius, the TFNA system offers a 1.0m radian radius. This doubles the likelihood of correct distal alignment within the center of the medullary cavity.
A: Normally we send through couriers like DHL, FEDEX, UPS, TNT etc., or post upon request from clients.
A: Yes, our products are manufactured under strict quality control standards and hold ISO 9001, ISO 13485, and CE certifications to meet global regulatory requirements.
A: We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test market our products. We can offer free samples, but do not cover the cost of freight.
A: Of course you can, just send us pictures or samples. Please note that custom requests may take a little longer time for delivery.
A: Generally, we maintain a standard stock for listed products. Payment <= 800USD requires 100% in advance. For payments > 800USD, we accept 30% T/T in advance, with the balance paid before shipment. Standard payment methods include L/C, T/T, Western Union, and PayPal.
A: All of our intramedullary nails are constructed from high-grade Titanium Alloy, which ensures excellent biocompatibility, high strength, and reduces post-operative complications.
